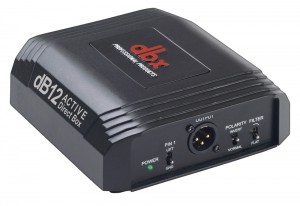

DB12
설치용 레코딩 & 방송 투어사운드
ACTIVE DIRECT BOX
커스텀 dbx 뮤메탈 차단 오디오 트랜스포머와 고급 뉴트릭 커넥터, 저 노이즈 회로를 통해 어떤 신호던지 그 신호 본연의 개성과 순수한 소리를 그대로 재현해 줍니다.
Features
• Premium Performance
• Rugged Design
• Stackable Chassis with Durable Rubber Foot
• Gold-plated Neutrik® XLR Connector
• Premium Chrome Toggle Switches
• Hi-Z 1/4" Input Jack
• Parallel 1/4" Thru Jack
• Transformer Isolated
• Premium Shielded Custom dbx Transformer
• Balanced XLR Lo-Z Output
• 3-Way 0/20/40 dB Pad Switch
• Flat/High-Cut Filter Switch
• Output Polarity Invert Switch
• Ground Lift Switch
• 4 Year Warranty!
Additional dB12 Features
• Phantom Powered
• Green LED Phantom Power Indicator
• +48V Phantom Operation
• Low-Noise Active Circuitr
Specifications
|
Input |
1 instrument/line/speaker level |
|
Input Connectors |
1/4" jack |
|
Input Type |
Unbalanced, RF filtered |
|
Insert Impedance |
150k Ohm typical |
|
Max Input |
+20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad) |
|
Output |
(Thru) 1 parallel from input jack, 1/4" Unbalanced, RF filtered |
|
Output Connectors |
XLR male balanced |
|
Output Impedance |
150k Ohm typical |
|
Max Output |
0dBu |
|
Transformer |
Custom dbx mu-metal-shielded |
|
Frequency Response |
20Hz to 20kHz, +/-2.5dB |
|
Noise |
<-105dB unweighted, 22kHz BW |
|
THD |
<0.01%, 20Hz to 20kHz BW; <0.005%, 1kHz |
|
Dimensions |
5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm) |
|
Unit Weight |
1.4 lbs / 0.65 kg |
