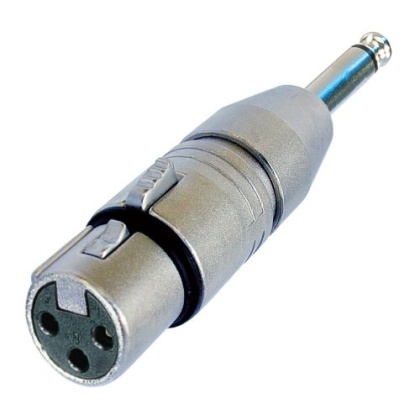

NA2FP 3 pole XLR female – Mono 1/4" plug (tip, sleeve contact) Wired according to IEC 268-12: Pin 2: signal Pin 1 and 3: connected to ground Features & Benefits
3 pole XLR female – Mono 1/4" plug (tip, sleeve contact)
Wired according to IEC 268-12:
Pin 2: signal
Pin 1 and 3: connected to ground
Versatile, pre-wired and ready to use adapters to reliably interlock various connector systems
Professional look and compact space saving design, based on the X Series (XLR worldwide accepted standard)
Rugged diecast shell for best reliability.
Title
NA2FP
Connection Type
Adapter
Contact resistance
¡Â 3 m¥Ø (XLR)
¡Â 6 m¥Ø
Dielectric strength
1.5 kV dc / > 1 kVdc (XLR/Plug)
Insulation resistance
> 2 G¥Ø
Wiring
according to IEC 268-12 pin 2 = signal, pin 1 and 3 connected to ground
Locking device
Latch lock
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Brass (CuZn39Pb3) (plug)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
gal Cu/Ni
Temperature range
-20 ¡ÆC to +65 ¡ÆC
