▶ 제품특성

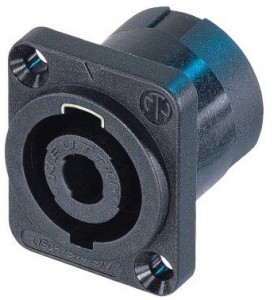

* 4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs
* www.Neutrik.com)


Standard current rating 30 Amp
Glass reinforced materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area
Airtight design - optimized for speaker applications

▶ 상세스펙







Product


Connector Type

Speakon


Gender

male


Electrical


Contact resistance

≤ 3 mΩ (after lifetime)


Dielectric strength

4 kVdc (peak)


Insulation resistance

> 1 GΩ (after dampheat)


Rated current per contact

30 A rms continuous


Rated current per contact

40 A audiosignal, duty cycle 50 %


Rated voltage

250 V (Insulation)


Attention

speakON is NOT to be used as an AC mains connector!


Mechanical


Lifetime

> 5000 mating cycles


Wiring

flat tabs for 3/16" (FASTON? 4.8 x 0.5 mm) or soldering


Locking device

Quick Lock


Mounting direction

front & rear


Chassis shape

D


Layout

standard hole position, thru holes


Material


Contact plating

4 µm Ag


Contacts

Bronze (CuSn6)


Shell

Polyamide (PA 6 30 % GR) black
