▶ 제품특성

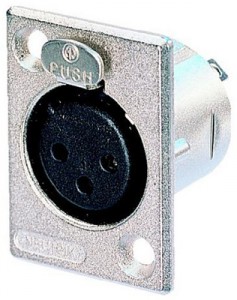

* 3 pole female receptacle, solder contacts, Nickel housing, silver contacts
* Contact 4,5,6,7pole  (www.Neutrik.com)


Smallest available hard wiring receptacles with large solder cups
Short female receptacle
Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32

▶ 상세스펙







Product


Connector Type

XLR


Gender

female


Electrical


Capacitance between contacts

≤ 4 pF


Contact resistance

≤ 5 mΩ


Dielectric strength

1,5 kVdc


Insulation resistance

> 2 GΩ (initial)


Insulation resistance

> 1 GΩ (after damp heat test)


Rated current per contact

16 A


Rated voltage

50 V


Mechanical


Insertion force

≤ 20 N


Withdrawal force

≤ 20 N


Lifetime

> 1000 mating cycles


Wiring

Solder contacts


Locking device

Latch lock


Mounting direction

front


Chassis shape

P
